Many coating processes require sanding or smoothing of the surface.

The latest model of our Wirth brush sanding machine is here!

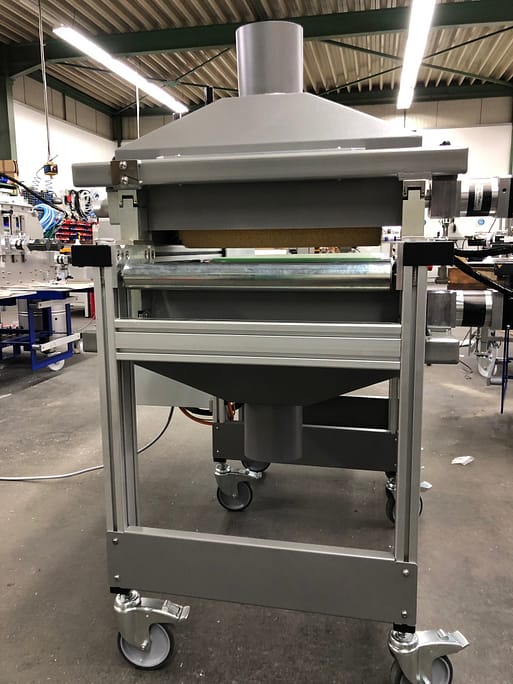

"Wirth" - cleaning and dedusting unit!

High-quality surfaces are best achieved with high-quality materials, qualified employees *and excellent machines.

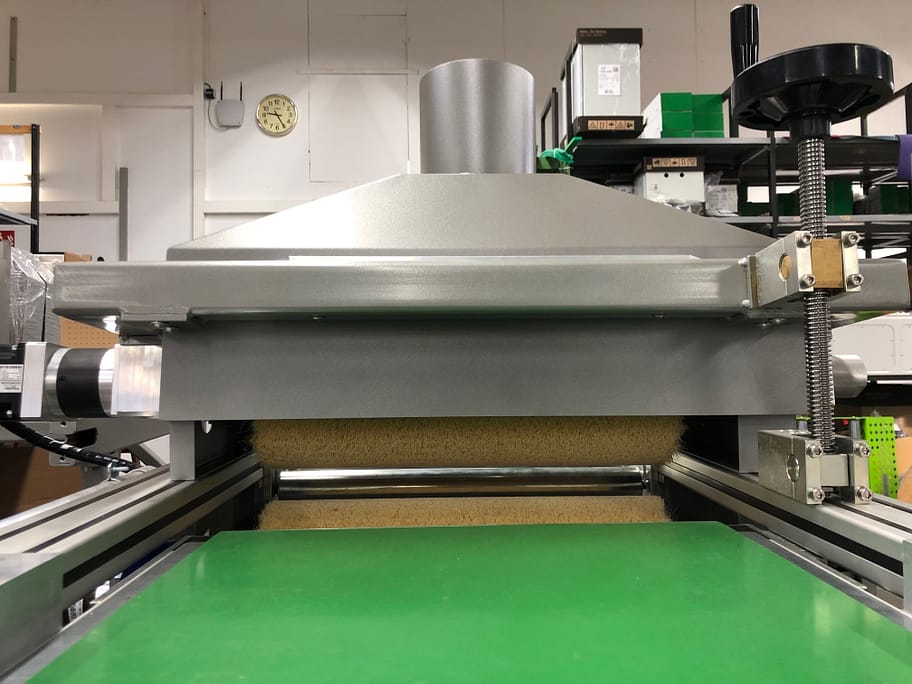

Today we present our double-sided cleaning machine. The mechanical cleaning is done by a driven brush roller at the top and at the bottom. The dust is mechanically loosened by the brushes and then disposed of in the existing extraction system. Thus, the wood is optimally prepared for further processing. For surfaces that dry by oxidation, drying in the lacquer drying trolley is common.

Cleaning on both sides minimises contamination of the coated surface in the lacquer drying trolley, as no more dust can get from the back to the lower freshly coated wood.

The brushes can be changed in a few easy steps.

Speed 3 - 25 m/min
Passage height 1 - 50 mm
Direction of rotation and speed adjustable
Working width 400 mm or 600 mm

This system can become part of a modular system. In our technical centre, we can also test your personal task for your economical and fast production.

Simply get in touch with us.

Vertical distribution of stains, oils and glazes on profile timbers

Axel Wirth Maschinen GmbH is renowned for producing the best glue application machines, oil application machines and paint application machines for use in the craftsman and production industry. Its reputation also extends to surface coatings in the furniture and flooring industry.

Oiling, staining, lye application and painting have been among the main tasks of machines from Axel Wirth Maschinen GmbH for 30 years.

But oils, stains and glazes on profile surfaces also need to be distributed.

To do this, a special universal machine has been developed that can be used for distribution with virtually all profiles.

Stains, oils and glazes can be distributed vertically thanks to many years of experience and the proven-in-practice design of the machinery. And all this with economic costs and exceptional quality of the end products.

The pressure pad brushes move the material to be coated into position, transporting it quickly and gently through the coating system. The subsequent distributor unit ensures a perfect finish. Our systems are able to process profiles as well as laths.

Upon request, the assemblies can be custom-configured in accordance with the client's requirements and if necessary even tried out in the test workshop.


The Innovative LED + X dryer from "Wirth"

As an extension of our machine program, we have picked up on customer requests together with the well-known paint manufacturer Saicos and developed a NEW LED + X drying system.

Together with ingenieurs from SAICOS we analyced the needs of costumers and supliers and the result ist the new LED drying system as an ideal complement for the SAICOS LED+X Technologie.

With the new "Wirth" LED + X dryer you can now

  • • Save energy
  • • Avoid ozone
  • • Dry cold
  • • extend maintenance intervals

So far, LED hardened oil surfaces have not been competitive in properties with oxidative, hybrid or UV-oiled surfaces.

The interplay of the newly developed formula and pioneering technology in the lighting segment now leads to a result that is of high quality, energy-efficient and durable.

  • Suitable for drying specially adjusted LED oils and LED paints
  • Wavelength 365 Nm - others are available
  • Lamp power 8 W
  • Illuminants are air-cooled
  • Mounted on a conveyor belt
  • Length 2000 mm
  • Width 450 mm
  • Drive 0.37 KW
  • Infinitely variable 3 - 25 m / min via frequency converter
  • Tape monitoring, LED + X lamps only turn on - when the conveyor belt is running
  • Disntance to the wood 25 - 30 mm

Advantages of the LED + X technology

  • Minimal energy consumption
  • 300 W at LED + X drying opposite 20,000 W for UV standard UV lamps
  • Minimal temperature effect on the workpiece
  • No more boil-up of the pigments
  • No boiling of resin
  • Longevity of the bulbs
  • Lifespan up to 15x longer compared to standard UV lamps
  • Ozone-free drying

Working width 300 mm

  • Mounted on a conveyor belt with a length of 2000 mm.
  • Belt drive 0.37 KW
  • Total energy demand of the dryer incl. Conveyor technology is approx. 1 KW
  • Working height 850 mm +/- 50 mm adjustable
  • Machine frame is powder coated
  • Mobile on wheels, braked
