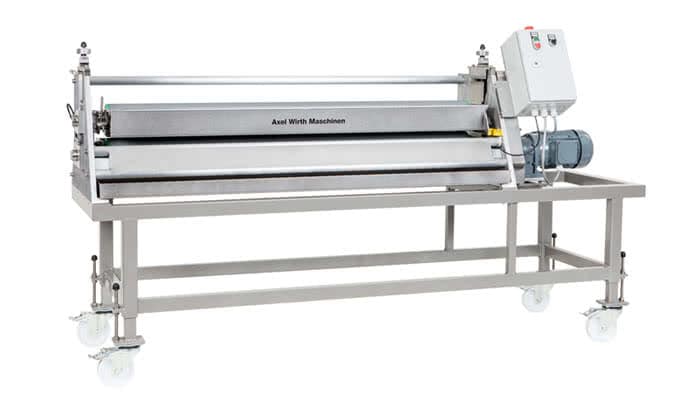

Roller coating machine LW 120

Roller coater LW120 (adhesive application system, oil application machine)

The LW120 roller coater is an easy-to-clean compact machine and is often used as a Glue applicator orr Oil application machinefor one or two-sided application. The LW120 is used for roller application of liquid media such as glues, oils, glazes, primers, synthetic resins and adhesives on flat substrates such as wood, cardboard, PS and XPS rigid foam boards, metal parts, brake linings, cork floors, insulation boards, . . .

The roller coater LW120 at a glance:

  • universally usable
  • for a wide range of application media
  • for single-sided application from above or also below, and for double-sided application
  • easy to clean
  • Quickly dismountable compact machine
  • Dosing via eccentric lever
  • Height adjustment can also be carried out centrally with a hand crank on request
  • for oil, wax, glaze, primer, white glue, 1-component adhesive, 2-component adhesive, soap, up to high-viscosity synthetic resin adhesive
  • For application on wood, parquet flooring, chipboard, cardboard, honeycomb panels, metal, stone, cork, rubber, PS and XPS rigid foam panels, …
  • in the standard roller widths 850mm, 1100mm and 1300mm

As an easy-to-clean compact machine that can be quickly dismantled, the LW120 roller coater is a convincing, universally applicable unit for coating a wide variety of application media. It impresses above all with its simple handling, durable and robust construction, as well as its efficient application of liquid and paste-like coating media. The LW120 roller coater from Axel Wirth Maschinen GmbH is a powerful and economically outstanding solution for a wide range of requirements as a glue coater or adhesive application system.

Almost all flat substrates can be coated on the LW120. For example, this machine type is used as an oil applicator and, in conjunction with the Distributor unit VE from Wirth can be found as interlinked equipment in oil application lines. Due to the easy handling, materials such as glues, oils, dispersions, paints, adhesives, synthetic resin adhesives, but also lacquers, waxes, soaps, primers, pastes and pasty adhesives, resins and contact adhesives can be applied without any problems on roller applicators of the type LW120.

Customers who use the LW120 roller coater come from the production of raised floors (sports halls), vehicle construction, the packaging industry, insulation production and further processing. The substrates to be coated are, for example, multi-layer boards, cork, wood, chipboard, solid wood, PS and XPS rigid foam boards, wood-cement composite insulation boards, metal parts, tiles and stoneware, but also brake linings for cars and trucks and much more.

The LW120 roller applicator is used for one-sided application (top, bottom), or also for two-sided application. The infinitely variable fine adjustment of the liquid application quantity by means of the eccentric levers on the side is uncomplicated and easy to handle. Depending on the application, the LW120 roller coater can be equipped with a wide variety of roller types and roller rubbers. In just a few steps and without any special tools, both the tray with the squeegee edge and the rollers can be removed in a matter of moments thanks to the practical plug-in axles with bayonet lock. This way, all parts can be cleaned easily and quickly.

If you want to minimise set-up times, you can also use a second set of rollers and a trough to make this applicator immediately ready for use again and thus avoid downtimes due to cleaning effort during ongoing shift operation.

All parts (except the drive) are made of high-quality, non-rusting materials to ensure a long service life.

TYP LW 120/850TYP LW 120/1100TYP LW 120/1300
Roller width850 mm1100 mm1300 mm
Clearance height100 mm100 mm100 mm
Upper stainless steel roller, application surface
rubberised smooth, grooved, porous
120 mm Ø120 mm Ø120 mm Ø
Lower stainless steel roller, application surface
gummed smooth, grooved, porous
120 mm Ø120 mm Ø120 mm Ø
1 or 2 pcs. stainless steel basin for glue, oil ...850 mm1100 mm1300 mm
Drive power at 400 V, 50 Hz, 3 phases0,75 kW0,75 kW0,75 kW
Feed (other on request)18 m/min 6 – 3518 m/min 6 – 3518 m/min 6 – 35
Machine dimensionsWidth
Depth
Height
1460/1660 mm
630 mm
540 mm
1760/1960 mm
630 mm
540 mm
1960/2160 mm
630 mm
540 mm
Protective deviceSafety edge at the workpiece inlet. CE certificate
Special equipmentGreater diffuser height: Material diffuser higher than 100 mm
Control motor 6 - 30 m/min
Special voltage
Technical modifications reservedOther sizes: 300 – 450 – 650 mm
Roller coating machine LW120
