The "Wirth" 1500mm metering roller coater is the new member of the successful range of equipment for economical and reliable surface application.

Here are the key technical data:

For the application of cold glues, adhesives, lacquers and other cold liquid media.

1 - and/or 2-sided application
Quick-change roller system for flexible application machine use.
Roller change within 5 minutes.

Sturdy design with state-of-the-art motor technology

Essential parts made of V2A

Line or single operation is possible

Applicator roller Ø 240 mm

Drive 1,5 KW -
Servo motor
Speed 5 - 35 m/min

Metering roller Ø 168 mm

Drive 1,5 KW -
Servo motor
Speed 5 - 35 m/min

Back pressure roller Ø 240 mm
Drive 1,5 KW -
Servo motor
Speed 5 - 35 m/min

Working height
850 mm +/-50 mm

Clearance height
1 – 100 mm

Working height adjustment by servo motor

Operation via HMI


  • Different pumps for filling the machine
  • Motorische Einstellung des Dosierspalts
  • Recipe management

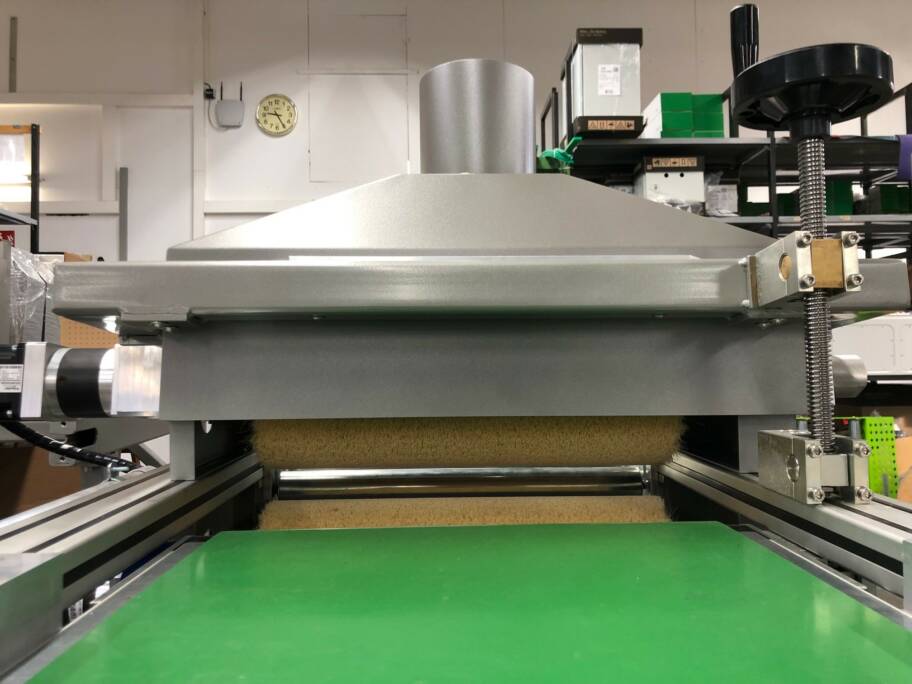

"Wirth" - cleaning and dedusting unit!

High-quality surfaces are best achieved with high-quality materials, qualified employees *and excellent machines.

Today we present our double-sided cleaning machine. The mechanical cleaning is done by a driven brush roller at the top and at the bottom. The dust is mechanically loosened by the brushes and then disposed of in the existing extraction system. Thus, the wood is optimally prepared for further processing. For surfaces that dry by oxidation, drying in the lacquer drying trolley is common.

Cleaning on both sides minimises contamination of the coated surface in the lacquer drying trolley, as no more dust can get from the back to the lower freshly coated wood.

The brushes can be changed in a few easy steps.

Speed 3 - 25 m/min
Passage height 1 - 50 mm
Direction of rotation and speed adjustable
Working width 400 mm or 600 mm

This system can become part of a modular system. In our technical centre, we can also test your personal task for your economical and fast production.

Simply get in touch with us.

Axel Wirth Maschinen supports the Aktion Mensch

That is what makes us different

Aktion Mensch 2023

We firmly believe that as a company we also have to take responsibility for our fellow human beings. For this reason, we support Aktion Mensch, which makes many projects possible with your lottery.

Join in and support Aktion Mensch with a lucky ticket.

Roller application in the stoneware industry

Coating tiles with glue – 1,5kg tiles-glue/m²

We coat everything!

That’s the motto of: Axel Wirth Maschinen GmbH

Besides working with wood, plastics, metal, foamed materials, and many other materials, we now successfully have put several projects with concrete sludge and tile glue into operation. For this purpose, the tiles are coated with glue and then laid onto the carrier material.

Our machines have previously already been used to apply glue on tiles, but mainly in manufacturing works. This time, we’ve arrived in the industry. With exact process times, automatic weighing and handling robots.

Usually, the requirement is, to apply as few as possible onto the material. But this time it’s different.

We have achieved, to apply 1,5kg / m². It was a bit special.

The constant supply of glue was our biggest challenge here. We got to know new components, which were quite rustic in their composition and in their fine-tuning. But we managed it, our machine pumped the viscous glue amounts continuously into itself and the safety of production was absolutely given.

The requirements for the stoneware and tile industry are very different than those of the wood industry, that’s why our machines had a hard task, which they mastered.

Besides glues, paints and print primers, our customers also process stone impregnations and lotus effect pastes on stoneware. This also worked on stone boards with deep bevels.

If you have coating work to do, feel free to request your needs to us. We have solutions for most cases.
